Mobility Master—Backup
localip 0.0.0.0 ipsec db947e8d1b383813a4070ab0799fa6246b80fc5cfcc3268f
controller-ip vlan 225
!
interface gigabitethernet 0/0/1
description "GE0/0/1"
trusted
switchport access vlan 225
!
interface gigabitethernet 0/0/2
description "GE0/0/2"
trusted
switchport access vlan 100
!
interface gigabitethernet 0/0/31
描述“GE0/0/3”
trusted
switchport access vlan 68
!
interface vlan 68
ip address 192.168.68.221 255.255.255.224
!
interface vlan 100
ip address 192.168.100.5 255.255.255.0
!
interface vlan 225
ip address 192.168.225.1 255.255.255.0
!
interface tunnel 2003
description "Tunnel Interface"
ip address 2.1.0.3 255.0.0.0
tunnel source 192.168.225.1
tunnel destination 192.168.30.1
trusted
ip ospf area 10.10.10.10
!
interface tunnel 2005
description "Tunnel Interface"
ip address 2.1.0.5 255.0.0.0
tunnel source 192.168.225.1
tunnel destination 192.168.50.1
trusted
ip ospf area 10.10.10.10
!
master-redundancy
master-vrrp 2
peer-ip-address 192.168.68.220 ipsec password123
!
vrrp 1
priority 99
authentication password123
ip address 192.168.68.217
vlan 68
tracking vlan 68 sub 40
tracking vlan 100 sub 40
tracking vlan 225 sub 40
no shutdown
!
vrrp 2
priority 99
ip address 192.168.225.9
vlan 225
tracking vlan 68 sub 40
tracking vlan 100 sub 40
tracking vlan 225 sub 40
no shutdown
!
ip默认网关192.168.68.1
ip route 192.168.0.0 255.255.0.0 null 0
!
router ospf
router ospf router-id 192.168.225.1
router ospf area 10.10.10.10 stub
router ospf redistribute vlan 100,225
!

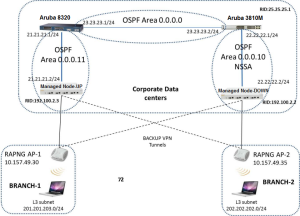

The following figure displays how themanaged deviceis configured for Instant APVPNVirtual Private Network. VPN enables secure access to a corporate network when located remotely. It enables a computer to send and receive data across shared or public networks as if it were directly connected to the private network, while benefiting from the functionality, security, and management policies of the private network. This is done by establishing a virtual point-to-point connection through the use of dedicated connections, encryption, or a combination of the two.for differentOSPFOpen Shortest Path First. OSPF is a link-state routing protocol for IP networks. It uses a link-state routing algorithm and falls into the group of interior routing protocols that operates within a single Autonomous System (AS).cases.
Figure 1
