Aruba 560 Series Wi-Fi 6 Access Point
Entry-level Wi-Fi 6 (802.11ax) for outdoor and warehouse environments
Cost-effective Wi-Fi 6 outdoors
Entry-level outdoor connectivity in environmentally challenging locations. Industrial-strength surge protection. Endures extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and max 165 mph wind speeds.
Ultimate efficiency
Ultimate efficiency
Supporting higher speed and higher user densities, the 560 Series APs maximize performance and efficiency with support for OFDMA and MU-MIMO technologies, enabling the most efficient communication between the client and access point.
IoT and location-ready
IoT and location-ready
Aruba Wi-Fi 6 supports 802.15.4/Zigbee, Bluetooth, and third party overlays to simplify the deployment and management of IoT services, asset-tracking services, security solutions, and IoT sensors. Ideal for IoT infrequent communications.
Simple and secure access
Simple and secure access
Enforces built-in policy firewall (layer 7) for each new client on the network and utilizes Aruba ClearPass Policy Manager for centralized policy management. For enhanced security, the 560 Series APs provide storage of credentials, keys, and booting.
Groundbreaking Wi-Fi 6 capabilities
Supports wired and wireless connectivity, in a single device, for up to 1.5 Gbps wireless throughput and 256 associated clients per radio.
1.5 Gbps maximum speed (HE80/HE20)
Delivers higher speed and reliability for environmentally challenging work and indoor environments.
Wi-Fi 6 for OFDMA and WPA3
Handles multiple clients regardless of device or traffic type, plus WPA3 and Enhanced Open increases enterprise security, plus Client Match eliminates sticky client issues.
IoT-ready Bluetooth 5 and 802.15.4/Zigbee support
Simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.
Dynamic Segmentation and policy-enforcement firewalls
Enforces (automatically) consistent policies across all networks, keeping users and devices secure.
AI-powered, Wi-Fi radio frequency RF with AirMatch
Utilizes AI learning, Air Match provides automated RF optimization and looks at analytics across the entire network.
Air Slice for SLA-grade performance
Guarantees a predictable user experience, prioritizing traffic and arrival of time-sensitive data with Air Slice application.
Details and Specifications for the Aruba 560 Series APs
Specifications
-
Hardware Variants - AP-565
- Built-in Omni Directional Antennas
- 5 GHz Antennas 5.4 dBi
- 2.4 GHz Antennas 3.2 dBi
- BLE/802.15.4 Antennas 3.3d Bi
- AP-567
- Built-in 90°H x 90°V Directional Antennas
- 5 GHz Antennas 6.8 dBi
- 2.4 GHz Antennas 7.1 dBi
- BLE/802.15.4 Antennas 3.0 dBi
Wi-Fi Radio Specifications - AP type:
- Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO
- Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
- 5GHz:
- Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
- 2.4GHz:
- Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously
- Up to 256 associated client devices per radio
- Up to 16 BSSIDs per radio
- Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
- 5.850 to 5.925 GHz
- 5.825 to 5.875 GHz
- Available channels: Dependent on configured regulatory domain
- Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
- Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)
- Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
- 802.11n high-throughput (HT) support: HT 20/40
- 802.11ac very high throughput (VHT) support: VHT 20/40/80
- 802.11ax high efficiency (HE) support: HE20/40/80
- Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
- 802.11n/ac/ax Packet aggregation: A-MPDU, A-MSDU
- Transmit power: Configurable in increments of 0.5 dBm
- Maximum (conducted) transmit power (limited by local regulatory requirements):
- 2.4 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2)
- 5 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2)
- Note: conducted transmit power levels exclude antenna gain.
- Maximum EIRP (limited by local regulatory requirements):
- 2.4 GHz band:
- 565: 29.2 dBm EIRP
- 567: 33 dBm EIRP
- 5 GHz band:
- 565: 31.4 dBm EIRP
- 567: 32.7 dBm EIRP
- 2.4 GHz band:
- Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
- Maximum ratio combining (MRC) for improved receiver performance
- Cyclic delay/shift diversity (CDD/CSD) to enable the use of multiple transmit antennas
- Short guard interval for 20-MHz, 40-MHz, and 80-MHz
- Space-time block coding (STBC) for increased range and improved reception
- 罗w-density parity check (LDPC) for high-efficiency error correction and increased throughput
- Transmit beam-forming (TxBF) for increased signal reliability and range
Power - Maximum (worst-case) power consumption:
- 15.6W
- Maximum (worst case) power consumption in idle mode:
- 4.2W
- Maximum (worst case) power consumption in deep-sleep mode:
- 1.7
- Power sources sold separately
- Power over Ethernet (PoE+):
- 802.3at-compliant
- When powered by 1x 802.3at, there are no restrictions
- When powered by 1x 802.3af with IPM enabled, the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the POE budget and actual power. The feature restrictions can be programmed.
- When powered by 1x 802.3af with IPM disabled, the AP will lower the 2.4Ghz radio to 1x1:1
- AP-565
-
Additional Interfaces - E0: 10/100/1000BASE-T (RJ-45)
- Auto-sensing link speed and MDI/MDX
- PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 3 or higher)
- 802.3az Energy Efficient Ethernet (EEE)
- Bluetooth 5 and 802.15.4 radio
- 2.4 GHz
- Bluetooth 5: up to 8 dBm transmit power and -95 dBm receive sensitivity
- Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity
- Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
- Visual indicator (multi-color LED): For system and radio status
- Reset button: Factory reset (during device power up)
- USB-C console interface
Mounting - AP-270-MNT-V1
- AP-270-MNT-V2
- AP-270-MNT-H1
- AP-270-MNT-H2
- AP-270-MNT-H3
Mechanical - AP-565
- Dimensions/weight (excluding mount):
- 16.5 cm (W) x 16.5 cm (D) x 11 cm (H)
- 6.5” (W) x 6.5” (D) x 4.3” (H)
- 1.03 kg/2.27 lbs
- Dimensions/weight (excluding mount):
- AP-567
- Dimensions/weight (excluding mount):
- 16.5 cm (W) x 16.5 cm (D) x 11 cm (H)
- 6.5” (W) x 6.5” (D) x 4.3” (H)
- 1.09 kg/2.4 lbs
- Dimensions/weight (excluding mount):
Environmental - Operating:
- Temperature: -40° C to +55° C (-40° F to +140° F) with full solar loading
- Humidity: 5% to 95% non-condensing internal
- Rated for operation in all weather conditions
- Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
- Operating Altitude: 3,000 m
- Water and Dust: IP66/67
- Salt Tolerance: Tested to ASTM B117-07A Salt Spray 200hrs
- Wind Survival: Up to 165 Mph
- Shock and Vibration ETSI 300-19-2-4
Regulatory Compliance - FCC/ISED
- CE Marked
- RED Directive 2014/53/EU
- EMC Directive 2014/30/EU
- 罗w Voltage Directive 2014/35/EU
- UL/IEC/EN 60950
- EN 60601-1-1, EN60601-1-2
- Railway Certs:
- EN 50155:2017 – Railway Applications
- EN 50121-1:2017 – Railway EMC
- EN 50121-3-2 – Railway EMC
- EN 50121 - 4:2016铁路免疫力
- IEC 61373 ed2:2008 – Railway Shock and Vibration
- For more country-specific regulatory information and approvals, please see your Aruba representative.
Regulatory Model Numbers - AP-565: APEX0565
- AP-567: APEX0567
Certifications - CB Scheme Safety, cTUVus
- UL2043 plenum rating
- Wi-Fi Alliance certified 802.11a/b/g/n/
- Wi-Fi Alliance certified Wi-Fi 6 (802.11ax)
- 无线认证™ac(2波功能)
- Passpoint® (Release 2) with ArubaOS and Instant 8.3+
Minimum Operating System Software Versions - ArubaOS and Aruba InstantOS 8.7.1.0
Warranty - E0: 10/100/1000BASE-T (RJ-45)
Related products
Find information on Aruba products that complement the 560 Series APs or another solution that might better suit your needs.
570 Series
高人口密度户外美孚的性能e and IoT deployments with dual-PoE interfaces, with a 2.5Gbps interface
- Access Point 575 outdoor omni antennas
- Access Point 577 outdoor directional antennas
- Access Point 574 connectorized Access Point for external antennas

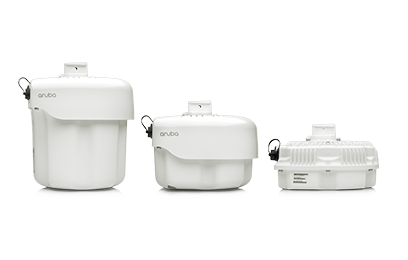

370 Series
