用于室外和极端环境
这个高-performance access point is perfect for high-density mobile and IoT environments.
极端的天气弹性
极端的天气弹性
370系列AP能够在恶劣的户外环境中生存，可以承受暴露于高温和低温的暴露，风速高达165英里 /小时，耐受性水分，沉淀，尘埃和灰尘和盐喷雾延长。此外，所有电气接口都包括工业强度的电涌保护。
简单购买，简单地部署
Integrated Bluetooth option
Integrated Bluetooth option
The 370 Series APs have an integrated BLE Beacon to simplify the management of IoT devices.
Flexible management options
Flexible management options
可用的管理解决方案包括阿鲁巴Central（有云管理和本地选项可用）以及阿鲁巴空军，支持多供应商网络。访问点可以通过零接触式配置部署，以减少部署时间，集中配置和简化库存管理。
恶劣室内和室外环境的工业设计
370 Series APS将多Gigabit Wi-Fi提供给户外和环境挑战的位置。
室外环境的高性能
With a maximum aggregate data rate of over 2 Gbps, the Wi-Fi 370 Series comes with MU-MIMO, four spatial streams, and optional 160MHz to add performance and capacity.
动态分割
自动在Aruba有线和无线网络上自动执行实时的设备级访问策略，以改善网络安全性和简单性。
智能应用程序可见性和控制
AppRF technology leverages deep-packet inspection to classify and block, prioritize, or limit bandwidth for 1,000s of enterprise apps or groups of apps.
硬化的工业设计
Extends the temperature range capabilities of indoor access points for environments that lack heating and cooling. The 370 Series APs also provide sealed connector interfaces to protect against dust and moisture.
Zero-touch provisioning
可以使用基于云的服务通过Aruba Central或Airwave进行出厂运输和零接触的访问点，以减少部署时间，集中配置和管理库存。
最佳课堂RF管理
Integrated AirMatch technology manages the 2.4GHz and 5GHz radio bands and actively optimizes the RF environment, including channel width, channel selection, and transmit power.

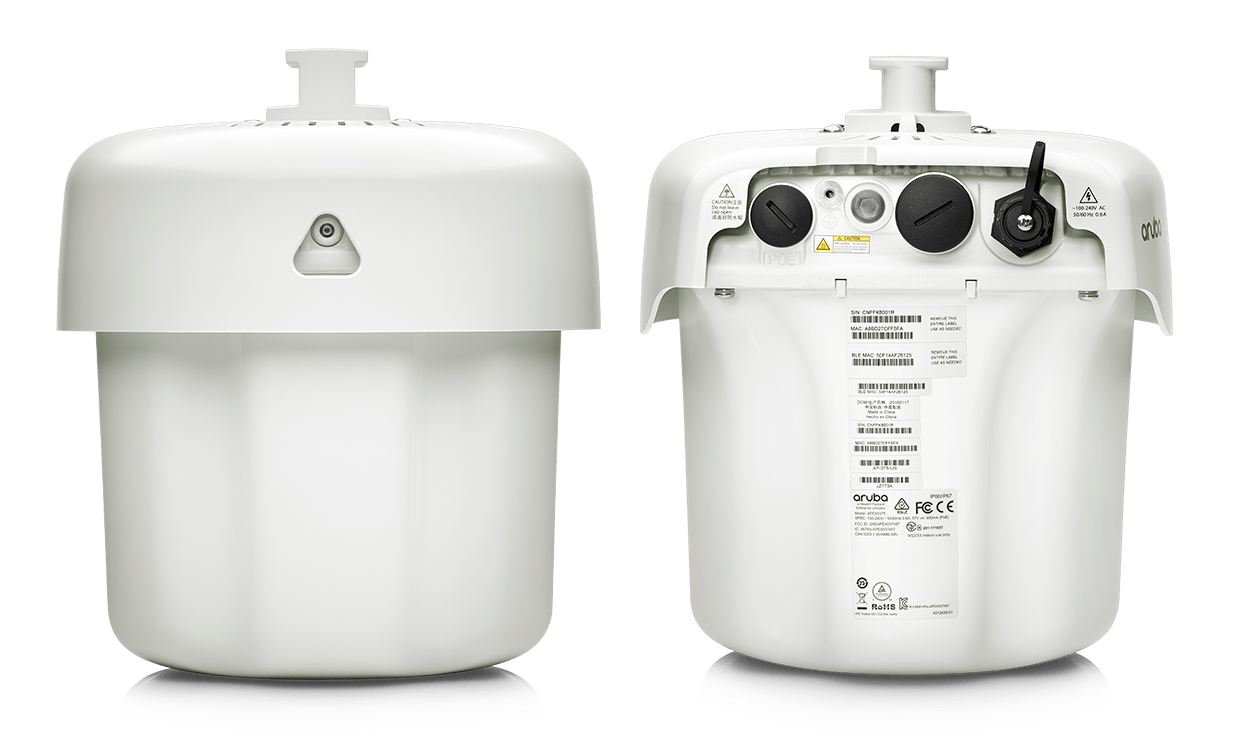

Details and specifications for the Aruba 370 Series APs
规格
-
独特的好处 - Dual Radio 802.11ac access point with Multi-User MIMO
- 支持s up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 300 Mbps in the 2.4 GHz band (with 2SS/HT40 clients)
- Built-in Bluetooth Low-Energy (BLE) radio
- Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time
- Advanced Cellular Coexistence (ACC)
- 最小化3G/4G细胞网络，分布式天线系统和商业小细胞/fomtocell设备的干扰
- 恶劣室内和室外环境的工业设计
- 密封的连接器界面以锁定灰尘和水分
- 统一通信应用程序的服务质量
- 支持统一通信应用程序的优先处理和政策执行，包括Microsoft Skype，包括使用加密的视频会议，语音，聊天和桌面共享
- Best-in-class RF management
- Integrated AirMatch技术管理2.4 GHz和5 GHz无线电频段，并积极优化RF环境，包括通道宽度，频道选择和传输功率。
- 频谱分析
- Spectrum Analyzer能够兼职或专用空气监测，远程扫描2.4 GHz和5 GHz无线电频段，以识别RF干扰的来源。
- 无线网格
- 无线网状连接在没有可用的以太网滴时方便。
- 智能应用程序可见性和控制
- Applf Technology利用深度数据包检查对1,000份企业应用程序或一组应用程序组进行分类，确定优先级或限制带宽。
- 阿鲁巴Secure Core
- Device assurance: Use of Trusted Platform Module (TPM) for secure storage of credentials and keys as well as secure boot.
- 集成的无线入侵保护提供威胁保护和缓解，并消除了对单独的RF传感器和安全设备的需求。
- IP reputation and security services identify, classify, and block malicious files, URLs, and IPs, providing comprehensive protection against advanced online threats.
- 加密的IPSEC VPN隧道将远程用户安全地连接到公司网络资源。
赵ose Your Operating Mode - As unified APs, the Aruba 370 Series can be deployed with or without a controller and can be readily switched to accommodate changing network needs.
- 控制器模式：当由Aruba Mobility Controller管理时，Aruba 370系列AP提供集中配置，数据加密，策略执行和网络服务，以及分布式和集中的流量转发或集中式转发或
- 无控制器（即时）模式：在Aruba Instant模式下，单个AP自动将网络配置分配到WLAN中的其他Instant AP。只需供电一个即时AP，将其配置在空中，然后插入其他APS - 即时网络。
- Other functional modes include:
- 分支部署的远程AP（RAP）模式
- Air monitor (AM) for wireless IDS, rogue detection, and containment
- Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
- Secure enterprise mesh
- Hybrid AP serves Wi-Fi clients and provides wireless intrusion protection and spectrum analysis
- For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Unified APs are factory-shipped to any site and configure themselves when powered up.
规格 - AP-374
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
- 四个用于外部天线操作的NF连接器
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
- 两个用于外部天线操作的NF连接器2.4 GHz
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
- AP-375
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
- 内部Omni天线4.6 DBI
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
- Internal Omni Antennas 4.0 dBi
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
- AP-377
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
- 内部80°H x 80°V方向天线6.3 DBI
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
- 内部80°H x 80°V方向天线6.4 DBI
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
Wi-Fi Radio Specifications - AP类型：室外硬化，双收音机，5 GHz 802.11ac 4x4 mimo和2.4 GHz 802.11n 2x2 mimo
- Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
- 5 GHz：
- 四个空间流多用户（MU）MIMO最多可同时使用1,733 Mbps无线数据速率
- 四个空间流单用户（SU）MIMO，最多1,733 Mbps无线数据速率到个人4x4 VHT80或2x2 VHT160客户端设备
- 2.4 GHz：
- Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2x2 HT40 client devices
- 支持for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
- 支持ed frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470至5.725 GHz
- 5.725 to 5.850 GHz
- 可用通道：取决于配置的调节域。
- Dynamic frequency selection (DFS) maximizes the use of available RF spectrum.
- 支持ed radio technologies:
- 802.11b：直接序列传播光谱（DSSS）
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 支持ed modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac：bpsk，qpsk，16-qam，64-qam，256-qam
- Transmit power: Configurable in increments of 0.5 dBm
- 最大（执行）发射电力（受当地监管要求的限制）：
- 2.4 GHz频段：+22 DBM每链， +25dBm聚集（2x2）
- 5 GHz band: +22 dBm per chain, +28dBm aggregate (4x4)
- Note: conducted transmit power levels exclude antenna gain.
- 最大EIRP（受当地监管要求的限制）：
- 2.4 GHz band:
- 374：25 +天线增益
- 375：29 dbm eirp
- 377：31.4 DBM EIRP
- 5 GHz band:
- 374：28 +天线增益 + TXBF增益
- 375：35.6 DBM EIRP
- 377: 36 dBm EIRP
- 2.4 GHz band:
- Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks.
- 最大比率组合（MRC）以提高接收器性能
- Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
- Short guard interval for 20-MHz, 40-MHz, 80-MHz and 160-MHz channels
- Space-time block coding (STBC) for increased range and improved reception
- 低密度平价检查（LDPC）进行高效率误差校正和增加的吞吐量
- Transmit beam-forming (TxBF) for increased signal reliability and range
- 支持ed data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
- 802.11N高通量（HT）支持：HT 20/40
- 802.11ac very high throughput (VHT) support: VHT 20/40/80/160
- 802.11N/AC数据包聚合：A-MPDU，A-MSDU
- Dual Radio 802.11ac access point with Multi-User MIMO
-
力量 - Worst-case power consumption from the AP: 23W
- 力量sources sold separately
- 对以太网的力量（POE+）：802.3AT符合
- 交流电源：100-240伏50/60Hz AC
Other Interfaces - One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- 一个1000Base-X SFP端口
- 蓝牙低能量(bie) radio
- 最多4 dbm发射功率（2类）和-91 dbm接收灵敏度
- Visual indicator (multi-color LED): For system and radio status
- 重置按钮：工厂重置（在设备电源时）
- 微型USB控制台界面
- 肯辛顿安全插槽
越来越多的 - AP-270-MNT-V1
- AP-270-MNT-V2
- AP-270-MNT-H1
- AP-270-MNT-H2
- AP-270-MNT-H3
机械的 - AP-374
- Dimensions/weight with aesthetic cover (excluding mount):
- 23厘米（w）x 24厘米（d）x 19厘米（h）
- 9.0" (W) x 9.4" (D) x 7.5" (H)
- 2.7 kg / 6 lbs
- 尺寸/重量没有美学盖（不包括安装座）：
- 23 cm (W) x 24 cm (D) x 14 cm (H)
- 9.0“（w）x 9.4”（d）x 5.5“（h）
- 2.4 kg / 5.3 lbs
- Dimensions/weight with aesthetic cover (excluding mount):
- AP-375
- Dimensions/weight (excluding mount):
- 23厘米（w）x 24厘米（d）x 27厘米（h）
- 9.0" (W) x 9.4" (D) x 10.6" (H)
- 2.4 kg / 5.3 lbs
- Dimensions/weight (excluding mount):
- AP-377
- Dimensions/weight (excluding mount):
- 23厘米（w）x 22 cm（d）x 13 cm（h）
- 9.0“（w）x 8.7”（d）x 5.1“（h）
- 2.1 kg / 4.6 lbs
- Dimensions/weight (excluding mount):
Environmental - 操作：
- Temperature: -40° C to +65° C (-40° F to +149° F)
- Humidity: 5% to 95% non-condensing
- Storage and transportation:
- 温度：-40°C至 +70°C（-40°F至 +158°F）
- 操作高度：3,000 m
- Water and dust
- IP66/67
- 耐盐
- Tested to ASTM B117-07A Salt Spray 200hrs
- 风存活：最高时速165英里 /小时
- 冲击和振动ETSI 300-19-2-4
Regulatory - FCC/ISED
- CE标记
- RED Directive 2014/53/EU
- EMC指令2014/30/EU
- Low Voltage Directive 2014/35/EU
- UL/IEC/EN 60950
- EN 60601-1-1, EN60601-1-2
- Railway Certs:
- EN 50155:2017 – Railway Applications
- EN 50121-1:2017 – Railway EMC
- EN 50121-3-2 - 铁路EMC
- EN 50121-4：2016 - 铁路免疫力
- IEC 61373 ED2：2008 - 铁路冲击和振动
- For more country-specific regulatory information and approvals, please see your Aruba representative.
监管模型号 - AP-374：APEX0374
- AP-375：APEX0375
- AP-377：APEX0377
Certifications - CB方案安全，ctuvus
- UL2043 plenum rating
- Wi-Fi联盟认证802.11A/B/G/N
- Wi-Fi认证™AC（具有第2波功能）
- EN50155 Railway
保修单 Minimum Software Versions - 阿鲁巴OS & Aruba InstantOS 8.3.0.0
