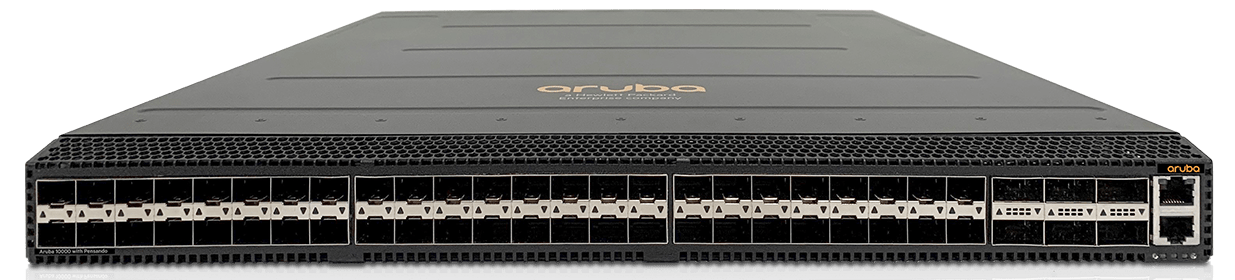

Aruba CX 10000 Switch Series
The next evolution of switching architecture. The Aruba CX 10000 provides 800G of distributed stateful firewall for east-west traffic, zero-trust segmentation, and pervasive telemetry.
Deploy software-defined stateful services where data is processed
Optimizes network bandwidth and performance
Optimizes network bandwidth and performance
The Aruba CX 10000 offers performance, scale, and automation for distributing advanced networking and security services where it’s impractical and costly to force traffic back and forth across the network to a centralized policy enforcement point. Instead, it simply applies services at the services network access layer edge, where the applications are running.
Improves security posture and limits appliance sprawl
Improves security posture and limits appliance sprawl
Centralized security appliances are inefficient and expensive at inspecting and protecting east-west application traffic within the data center. Hair-pinning traffic to an appliance at the data center edge comes with heavy performance and cost penalties. The Aruba CX 10000 provides an entirely new switching solution to overcome these legacy limitations.
Extends Zero Trust and micro segmentation
Extends Zero Trust and micro segmentation
The Aruba CX 10000 allows operators to extend industry standard leaf-spine networking with 800G of distributed micro-segmentation, east-west firewalling, NAT, encryption and telemetry services—delivered inline, across every port, closer to critical enterprise applications.
Simplifies operations
Simplifies operations
Aruba Fabric Composer provides unified network and security management for the Aruba CX 10000 platform. This provides automated switch and network configurations, while also unifying security policy and distributed firewalls across the entire switching fabric. This unified network and security policy management significantly simplifies operations and troubleshooting.

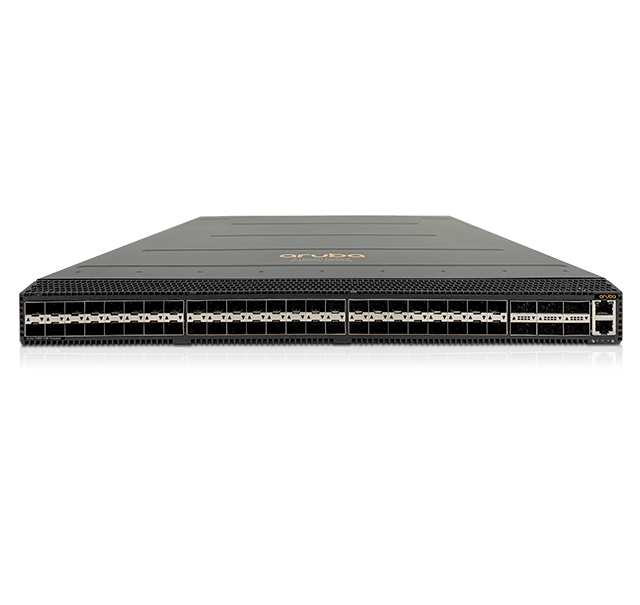

Distributed Services Switch
High-performance data center switching
3.6Tbps of switching capacity, 48 ports of line rate 10/25GbE (SFP/SFP+/SFP28), and 6 40/100GbE ports (QSFP+/QSFP28).
Programmable DPU (Pensando Elba)
800G of distributed stateful firewall for east-west traffic, zero-trust segmentation, pervasive telemetry, and in the future stateful NAT, encryption services.
Unified network and security policy
Centralized switch/network configurations and distributed firewall policy definitions orchestrated by Aruba Fabric Composer.
Security ecosystem integration
Integration with a wide variety of security and network performance tools including Advanced Security, Application Dependency Mapping and Performance Management.
Next Generation Migration
Stateful software-defined services, at scale, proving orders of magnitude scale and performance improvements over traditional data center L2/3 switches at a fraction of their TCO.
Details and specifications for the Aruba CX 10000 Switch Series
Specifications
-
Overview R8P13A 10000-48Y6C
Front-to-Back switch bundleR8P14A 10000-48Y6CZ
Back-to-Front switch bundleDescription - 1 x R8P13A base 10000-48Y6C switch
- 6 x R8R53A Front-to- Back Fan
- 2 x R8R51A Front- to-Back 800W 100-240VAC Power Supply
- Supports 48 ports of 1G/10G/25GbE (SFP/SFP+/SFP28) and 6 ports of 40G/100GbE (QSFP+/QSFP28) [optional 1GBASE-T and 10GBASE-T transceivers, 4x10G and 4x25G breakout cables]
- 1 x R8P14A base 10000-48Y6C switch
- 6 x R8R54A Back-to- Front Fan
- 2 x R8R52A Back-to- Front 800W 100- 240VAC Power Supply
- Supports 48 ports of 1G/10G/25GbE (SFP/SFP+/SFP28) andports of 40G/100GbE (QSFP+/QSFP28) [optional 1GBASE-T and 10GBASE-T transceivers, 4x10G and 4x25G breakout cables]
Power supplies Field-replaceable, hot-swappable, and up to 2 power supplies. Field-replaceable, hot-swappable, and up to 2 power supplies. Fans Field-replaceable, hot-swappable, and up to 6 fans. Field-replaceable, hot-swappable, and up to 6 fans. Physical characteristics R8P13A 10000-48Y6C
Front-to-Back switch bundleR8P14A 10000-48Y6CZ
Back-to-Front switch bundleDimensions (HxWxD) 4.44 cm x 43.82 cm x 51.1 cm
(1.75” x 17.25” x 20.12”)4.44 cm x 43.82 cm x 51.1 cm
(1.75” x 17.25” x 20.12”)Full configuration weight 9.75 kg (21.45 lbs) 9.75 kg (21.45 lbs) Additional specifications R8P13A 10000-48Y6C
Front-to-Back switch bundleR8P14A 10000-48Y6CZ
Back-to-Front switch bundleCPU 2.9GHz 2.9GHz Memory, Drive and Flash 32GB RAM, 64GB SSD 32GB RAM, 64GB SSD Packet Buffer 32MB 32MB Performance1 R8P13A 10000-48Y6C
Front-to-Back switch bundleR8P14A 10000-48Y6CZ
Back-to-Front switch bundleSwitching Capacity 3.6Tbps (bidirectional) 3.6Tbps (bidirectional) IPv4 Host Table 120,000 120,000 IPv6 Host Table 52,000 52,000 IPv4 Unicast Routes 131,072 131,072 IPv6 Unicast Routes 32,732 32,732 MAC Table Size 98,304 98,304 IGMP Groups 4,094 4,094 MLD Groups 4,094 4,094 IPv4 Multicast Routes 4,094 4,094 IPv6 Multicast Routes 4,094 4,094 1Some of these scaling numbers assume shared tables.
Environment R8P13A 10000-48Y6C
Front-to-Back switch bundleR8P14A 10000-48Y6CZ
Back-to-Front switch bundleOperating Temperature 0° C to 40° C (32° F to 104°F) up to 3.0 km (10,000 ft.) 0° C to 40° C (32° F to 104°F) up to 3.0 km (10,000 ft.) Operating Relative Humidity 10% to 85% at 40° C (104° F) non-condensing 10% to 85% at 40° C (104° F) non-condensing Non-Operating -40° C to 70° C (-40° F to 158° F) up to 3.0 km (15,000 ft.) -40° C to 70° C (-40° F to 158° F) up to 3.0 km (15,000 ft.) Non-Operating/Storage Relative Humidity 5% to 95% at 65° C (149° F) 5% to 95% at 65° C (149° F) Max Operating Altitude Up to 10,000 ft. (3.048 km) Up to 10,000 ft. (3.048 km) Max Non-Operating Up to 15,000 ft. (4.6 km) Up to 15,000 ft. (4.6 km) Primary airflow Front-to-Back Port to PSU or Back-to-Front PSU to Port Front-to-Back Port to PSU or Back-to-Front PSU to Port Electrical characteristics R8P13A 10000-48Y6C
Front-to-Back switch bundleR8P14A 10000-48Y6CZ
Back-to-Front switch bundleFrequency 50-60Hz 50-60Hz AC Voltage 100-240 volts 100-240 volts Current 6A (low voltage) – 3A (high voltage) 6A (low voltage) – 3A (high voltage) Typical Power Consumption Max: 750W Max: 750W Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013 UL 60950-1, CSA 22.2 No 60950-1 EN 60825-1:2007/IEC 60825-1:2007 Class 1 EMC EN 55032:2012, Class A EN 55024:2010 EN 61000-3-2:2014, Class A EN 61000-3-3:2013 FCC CFR 47 Part 15:2010, Class A VCCI Class A CNS 13438 Lasers EN60825-1:2014/IEC 60825-1: 2014 Class 1 Class 1 Laser Products/Laser Klasse 1 Management CLI REST API SNMP Aruba Fabric Composer NetEdit Aruba Central RJ-45 serial USB micro USB console RJ-45 Ethernet port Mounting and enclosure Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; order 2-post or 4-post mounting kit separately - 1 x R8P13A base 10000-48Y6C switch
