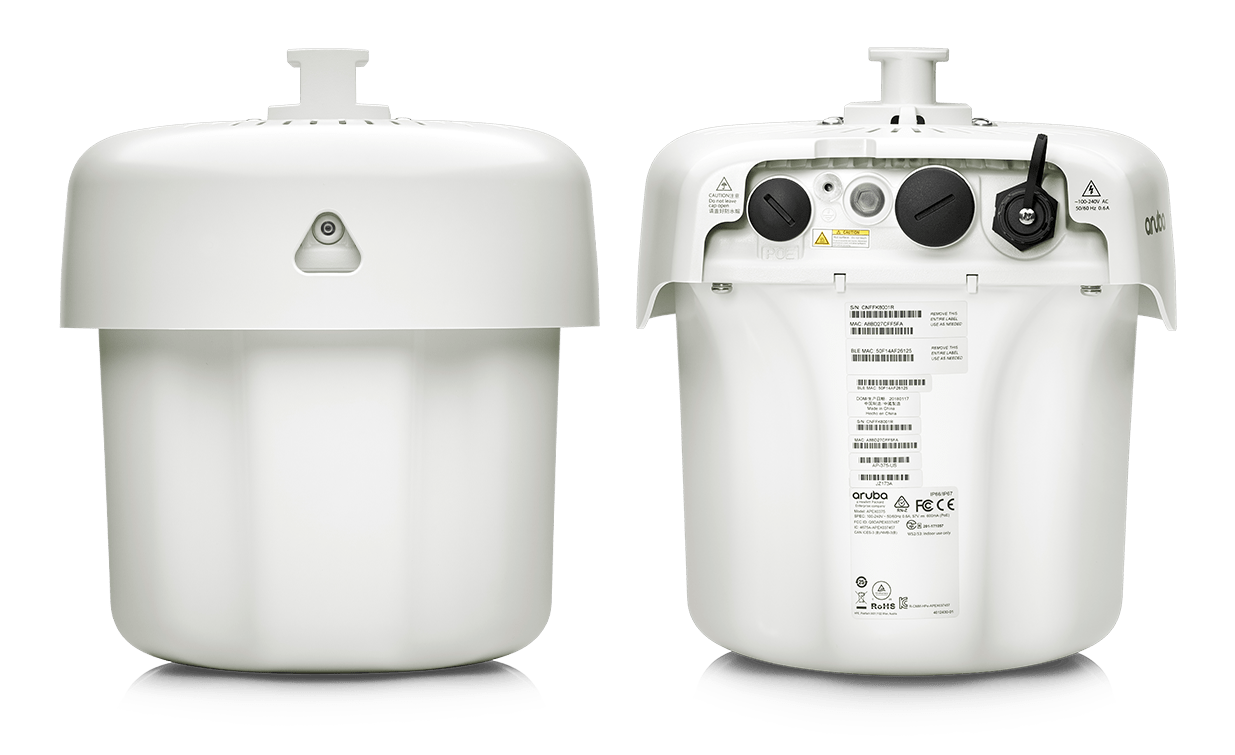

Aruba 370EX系列危险位置Wi-Fi 5接入点
Providing high-performance wireless connectivity and innovative capabilities, the resilient 370EX access point is easy to deploy and operate in hazardous locations.
对于室外和环境挑战的地点
The Aruba 370EX HazLoc Series APs deliver proven gigabit Wi-Fi and advanced client, location, and IoT support to meet the most demanding weather and temperature requirements.
Purpose-built to survive in the harshest environments
Purpose-built to survive in the harshest environments
This high-performance 802.11ac Wave 2 access point is perfect for oil rigs, mining facilities, industrial plants, and networks that need to be protected from extreme temperatures, flammable gas, vapor, and dust concentrations.
安全连接
安全连接
The 370EX HazLoc Series APs come highly secured with the latest security standard WPA3 and Enhanced Open. End-to-end encryption is ensured through the Aruba Policy Enforcement Firewall, while Dynamic Segmentation automatically enforces consistent policies across wired and wireless networks.
物联网-ready
物联网-ready
The 370EX HazLoc Series APs include an integrated Bluetooth Low Energy radio to simplify the deployment and management of location services, asset tracking services, security solutions, and IoT sensors. This allows organizations to leverage the 370EX HazLoc Series APs as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.
Flexible management options
Flexible management options
Available management solutions includeAruba Central(available in cloud-managed and on-premises options), as well asAruba AirWave, which supports multi-vendor networks. Access points can be deployed with zero-touch provisioning to reduce deployment time, centralize configuration, and simplify inventory management.
Durable Wi-Fi 5 for hazardous locations
Aruba 370EX Hazloc系列802.11ac Wave 2 AP凭借1类2级和ATEX区2区认证，将硬化的多Gigabit Wi-Fi运送到危险位置。
Certified for extreme weather resiliency
370EX HAZLOC系列AP为最严峻的环境而建，该APS经过IP66/67（防水和防尘）部署的认证。
高性能和效率
超过2 Gbps，四个空间流和可选的160MHz通道带宽的最大总计数据速率迅速增加了性能和容量。
Intelligent app visibility and control
App visibility technology leverages deep-packet inspection to classify and block, prioritize, or limit bandwidth for 1000s of enterprise apps or groups of apps.
Advanced Cellular Coexistence (ACC)
Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.
MU-MIMO-aware ClientMatch
Performance benefits of MU-MIMO result in an increased network capacity and a boost in network efficiency, resolving sticky client issues.
Details and specifications for the Aruba 370EX Series APs
Specifications
-
Unique Features - Dual Radio 802.11ac access point with Multi-User MIMO
- Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 300 Mbps in the 2.4 GHz band (with 2SS/HT40 clients)
- Built-in Bluetooth support
- Enables location-based services such as wayfinding and asset tracking
- Advanced Cellular Coexistence (ACC)
- Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment
- 极端天气设计
- Sealed interfaces to lock out dust and moisture
- Built-in QoS for unified communications
- Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype and for Business applications with encrypted video-conferencing, voice, chat, and desktop sharing
- Best-in-class RF management
- Integrated AirMatch technology manages the 2.4-GHz and 5-GHz radio bands and actively optimizes the RF environment.
- Spectrum analysis
- Part-time or dedicated air monitoring, that remotely scans the 2.4-GH and 5-GHz radio bands to identify sources of RF interference
- Wireless mesh support
- 方便的AP连接性和Wi-Fi覆盖范围的扩展，没有可用的以太网滴剂
- Intelligent app visibility and control
- App visibility technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for 1000's of enterprise apps or groups of apps.
- Aruba core hardware and software security
- 使用受信任的平台模块（TPM）用于安全存储凭据和钥匙以及安全启动
- Integrated wireless intrusion protection offers threat protection and mitigation and eliminates the need for separate RF sensors and security appliances.
- IP声誉和安全服务识别，分类和阻止恶意文件，URL和IPS，提供对先进在线威胁的全面保护。
- 加密的IPsec VPN隧道安全地连接远距离e users to corporate network resources.
Choose Your Operating Mode - The AP-370EX Series supports Aruba's unique dual operating system capability called Unified mode. The APs can be deployed with a controller or run in Instant mode and readily switched to accommodate changing network needs.
- Controller mode: When managed by Aruba Mobility Controllers, Aruba 370EX Series offers centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding, or
- Controllerless (Instant) mode: In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – Instant Network.
- 其他功能模式包括：
- Remote AP (RAP) mode for branch deployments
- Air monitor (AM) for wireless IDS, rogue detection and containment
- 专用或混合的光谱分析仪用于识别RF干扰源
- Secure enterprise mesh
- Hybrid AP serves Wi-Fi clients and provides wireless intrusion protection and spectrum analysis.
- For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Unified APs are factory-shipped to any site and configure themselves when powered up.
Specifications - AP-375EX/AP-375ATEX
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
- Internal Omni Antennas 4.6 dBi
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
- Internal Omni Antennas 4.0 dBi
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
- AP-377EX
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
- Internal 80°H x 80°V Directional Antennas 6.3 dBi
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
- Internal 80°H x 80°V Directional Antennas 6.4 dBi
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
Wi-Fi Radio Specifications - AP type: Outdoor hardened, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 2x2 MIMO
- 软件可配置的双收音机支持5 GHz（无线电0）和2.4 GHz（无线电1）
- 5 GHz:
- Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
- Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices
- 2.4 GHz:
- Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2x2 HT40 client devices
- Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
- 支持的频带（适用国家特定限制）：
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
- 5.825 to 5.875 GHz
- Available channels: Dependent on configured regulatory domain.
- 动态频率选择（DFS）可最大程度地使用可用的RF光谱。
- 支持无线电技术：
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- 发射电源：可增量为0.5 dbm
- Maximum (conducted) transmit power (limited by local regulatory requirements):
- 2.4 GHz频段：+25 dbm每链，+28 dbm骨料（2x2）
- 5 GHz乐队：+22 dBm per chain, +28 dBm aggregate (4x4)
- Note: Conducted transmit power levels exclude antenna gain.
- Maximum EIRP (limited by local regulatory requirements):
- 2.4 GHz乐队：
- 375EX/ATEX: 32.0dBm EIRP
- 377EX: 34.4 dBm EIRP
- 5 GHz乐队：
- 375EX: 35.6 dBm EIRP
- 375ATEX: 32dBm EIRP
- 377EX: 36 dBm EIRP
- 2.4 GHz乐队：
- 晚期细胞共存（ACC）可最大程度地减少细胞网络的干扰。
- Maximum ratio combining (MRC) for improved receiver performance
- Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
- Short guard interval for 20-MHz, 40-MHz, 80-MHz and 160-MHz channels
- 时空块编码（STBC）以增加范围和改进的接收
- Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
- 传输波束形成(TxBF)增加的信号reliability and range
- Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g：6、9、12、18、24、36、48、54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
- 802.11n high-throughput (HT) support: HT 20/40
- 802.11ac very high throughput (VHT) support: VHT 20/40/80/160
- 802.11n/ac packet aggregation: A-MPDU, A-MSDU
- Dual Radio 802.11ac access point with Multi-User MIMO
-
Power - Worst-case power consumption from the AP: 23W
- Power sources sold separately.
- Power over Ethernet (PoE+): 802.3at-compliant
Other Interfaces - One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- Autosensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- One 1000BASE-X SFP Port
- Bluetooth Low Energy (BLE) radio
- 最多4 dbm发射功率（2类）和91 dbm接收灵敏度
- Visual indicator (multi-color LED): For system and radio status
- Reset button: Factory reset (during device power up)
- Micro USB console interface
- Kensington security slot
Mounting - AP-270-MNT-V1
- AP-270-MNT-V2
- AP-270-MNT-H1
- AP-270-MNT-H2
- AP-270-MNT-H3
Mechanical - AP-375EX/AP-375ATEX
- Dimensions/weight (excluding mount):
- 23 cm (W) x 24 cm (D) x 27 cm (H)
- 9.0“（w）x 9.4”（d）x 10.6“（h）
- 2.4 kg / 5.3 lbs
- Dimensions/weight (excluding mount):
- AP-377EX
- Dimensions/weight (excluding mount):
- 23 cm (W) x 22 cm (D) x 13 cm (H)
- 9.0" (W) x 8.7" (D) x 5.1" (H)
- 2.1 kg / 4.6 lbs
- Dimensions/weight (excluding mount):
环境的 - Operating:
- Temperature: -40° C to +65° C (-40° F to +140° F)
- Humidity: 5% to 95% noncondensing
- Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
- Operating altitude: 3,000 m
- Water and dust
- IP66/67
- Salt tolerance
- 测试到ASTM B117-07A盐喷雾200小时
- Wind survival: Up to 165 Mph
- Shock and vibration ETSI 300-19-2-4
监管 - FCC/ISED
- CE Marked
- 红色指令2014/53/eu
- EMC Directive 2014/30/EU
- 低压指令2014/35/eu
- UL/IEC/EN 60950
- EN 60601-1-1, EN60601-1-2
- 有关更多特定于国家 /地区的监管信息和批准，请参阅您的Aruba代表。
监管Model Numbers - AP-375EX/AP-375ATEX: APEX0375
- AP-377EX: APEX0377
Certifications - CB Scheme Safety, cTUVus
- UL2043全体评级
- Wi-Fi Alliance certified 802.11a/b/g/n
- Wi-Fi CERTIFIED™ ac (with wave 2 features)
- Passpoint®(Release 2) with ArubaOS and Instant 8.3+
- Class 1 Div 2 (AP-375EX/377EX Only)
- ATEX Zone 2 (AP-375ATEX Only)
Warranty Minimum Software Versions - ArubaOS & Aruba InstantOS 8.3.0.0
Aruba is a Leader in the 2021 Gartner®Magic Quadrant™for the Wired and Wireless LAN Access Infrastructure
Related products
Find information on Aruba products that complement and support the 370EX HazLoc Series APs or another solution better suited to your needs.

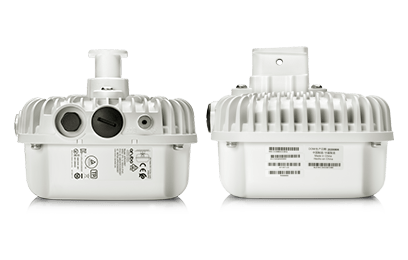

560例系列AP
This entry-level, Wi-Fi 6 outdoor access point comes with industrial-strength surge protection. Able to endure extreme temperatures, persistent moisture, precipitation, airborne contaminants, dust, salt sprays, and max 165 mph wind speeds, it is ideal for environmentally challenging locations.

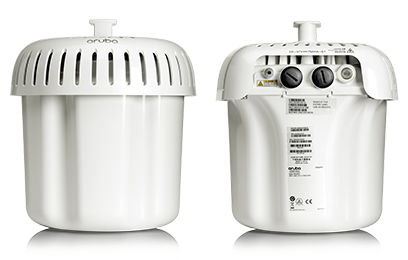

570EX Series AP
