Aruba 500系列室内访问点
Secure Wi-Fi 6 (802.11ax) access points for indoor environments such as mid-sized offices, schools, or retail spaces where fewer people are on the network at the same time.
Simple and secure access for mobile environments
Wi-Fi 6 solution designed for indoor environments, offering speed and reliability for smaller offices and clinics, and supports growth.
Ultimate efficiency
Ultimate efficiency
基于Wi-Fi 6标准，500系APS包括OFDMA和目标唤醒时间等功能，以获得更好的多用户性能，提高效率和绿色能源节省。
IoT and location-ready
IoT and location-ready
阿鲁巴Wi-Fi 6 includes support for Zigbee and Bluetooth to simplify the deployment and management of IoT location-based services.
Simple, secure access
Simple, secure access
通过更强的加密和身份验证，安全的凭据/键存储以及用户和IoT访问策略执行防火墙保护网络安全。
Groundbreaking Wi-Fi 6 capabilities
Supports wired and wireless connectivity (in a single device) for up to 1.5 Gbps wireless and 256 associated clients per radio.
1.5 Gbps maximum real-world speed (HE80/HE20)
Delivers speed and reliability for work and indoor environments.
Wi-Fi 6 support for OFDMA plus Client Match
Handles multiple clients on each channel regardless of device or traffic type, using AI to eliminate sticky client issues.
IoT-ready Bluetooth 5 and Zigbee support
Simplifies deploying and managing IoT location services, asset-tracking services, security solutions, IoT sensors, and includes third party USB support.
动态分割和政策执行防火墙
Flexible and scalable, it automatically enforces consistent policies across wired and wireless networks.
AI-powered, Wi-Fi radio frequency RF with AirMatch
Utilizing AI learning, Air Match provides automated RF optimization and looks at analytics across the entire network.
Application assurance
With Air Slice, the 500 Series APs provide guaranteed bit rate and bounded latency with intelligent scheduling.
Aruba 500系列AP的详细信息和规格
Specifications
-
Hardware Variants - AP-504
- AP-505
Wi-Fi无线电规范 - AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO
- 5GHz radio: Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
- 2.4GHz radio: Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with individual 2SS HE40 802.11ax client devices or with two 1SS HE40 802.11ax MU-MIMO capable client devices simultaneously
- 相关客户端设备的最大数量：每个广播最多256个相关的客户端设备
- Maximum number of BSSIDs: 16 BSSIDs per radio
- Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835GHz
- 5.150至5.250GHz
- 5.250 to 5.350GHz
- 5.470至5.725GHz
- 5.725到5.850 ghz
- 可用渠道：取决于配置的监管域
- Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac：正交频分复（OFDM）
- 802.11AX：正交频分多访问（OFDMA），最多8个资源单元
- 支持的调制类型：
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
- 802.11AX：BPSK，QPSK，16-QAM，64-QAM，256-QAM，1024-QAM
- 802.11N高通量（HT）支持：HT20/40
- 802.11ac very high throughput (VHT) support: VHT20/40/80
- 802.11ax high efficiency (HE) support: HE20/40/80
- 支持的数据率（MBP）：
- 802.11b：1，2，5.5，11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11N：6.5至300（MCS0至MCS15，HT20至HT40），400与256-QAM
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
- 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
- 802.11n/ac packet aggregation: A-MPDU, A-MSDU
- Transmit power: Configurable in increments of 0.5 dBm
- 最大（总计，总数）发射电源（受当地监管要求的限制）：
- 2.4 GHz band: +21 dBm (18dBm per chain)
- 5 GHz频段：+21 dBM（每链18 dBm）
- Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
Wi-Fi Antennas - AP-504:
- Two (female) RP-SMA connectors for external dual band antennas (A0 and A1, corresponding with radio chains 0 and 1). Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.7dB in 2.4GHz and 1.3dB in 5GHz.
- AP-505:
- Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
- 结合了MIMO无线电的每个天线的模式，组合的峰值增益为2.4GHz的平均模式为4.3dbi，在5GHz中为5.6dbi。
- Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
其他接口 - E0: Ethernet wired network port (RJ-45):
- Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX
- PoE-PD: 48Vdc (nominal) 802.3af/at PoE (class 3 or 4)
- 802.3az Energy Efficient Ethernet (EEE)
- DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
- USB 2.0主机接口（键入A连接器）：能够将最多1A / 5W采购到附件的设备
- 蓝牙低能量(BLE5.0)和无线个域网内部(802.15.4。提供服务) radio:
- BLE：最多7dBM发射功率（1类）和-93DBM接收灵敏度（1Mbps）
- Zigbee: up to 6dBm transmit power and -96dBm receive sensitivity Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.3dBi
- Visual indicators (two multi-color LEDs): For System and Radio status
- Reset button: Factory reset, LED mode control (normal/off)
- Serial console interface: Proprietary, micro-B USB physical jack
- 安全插槽：肯辛顿安全插槽
-
Power Sources and Power Consumption - 美联社支持直接直流电力和对以太网的力量
- 美联社支持直接直流电力和对以太网的力量
- 当DC和POE电源都可以使用时，DC Power优先于POE单位
- 电源分别出售；有关详细信息，请参见500系列订购指南
- 当采用直流或802.3(第4类)坡,一个P will operate without restrictions units
- 当由802.3AF（3类）POE和IPM功能禁用时，AP将禁用USB端口。在相同的配置中，但是在启用了IPM时，AP将以无限制的模式启动，但可以根据POE预算和实际功率动态应用限制。可以对功能限制和顺序进行编程。
- 最大（最坏）功耗（没有 /带有USB设备）：
- DC powered: 8.9W / 14.2W
- PoE powered (802.3at): 11.0W / 16.5W
- Poe Powered（802.3AF）：11.0W / 13.5W
- This assumes that up to 5W is supplied to the attached USB device
- Maximum (worst-case) power consumption in idle mode: 4.3W (DC) or 6.1W (PoE)
- Maximum (worst-case) power consumption in deep-sleep mode: 1.7W (DC) or 3.3W (PoE)
Mechanical Specifications - Dimensions/weight (AP-505; unit, excluding mount bracket):
- 160mm（w）x 161mm（d）x 37mm（h）
- Weight: 500g
- Dimensions/weight (AP-505; shipping):
- 193mm (W) x 183mm (D) x 63mm (H)
- Weight: 645g
- Mounting details (AP-505): A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the500 Series Ordering Guidefor details.
Mounting Details - A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the Aruba mount kits (sold separately); see the ordering Information section below for details.
环境指标 - Operating conditions:
- Temperature: 0°C to +50°C / +32°F to +122°F
- Humidity: 5% to 93% non-condensing
- AP is plenum rated for use in air-handling spaces
- ETS 300 019 class 3.2 environments
- 存储和运输条件：
- 温度：-40°C至 +70°C / -40°F至 +158°F
- Humidity: 5% to 93% non-condensing
- ETS 300 019 classes 1.2 and 2.3 environments
Reliability - 失败（MTBF）之间的平均时间：在 +25°C工作温度下1.3MHR（148yrs）
Regulatory and Safety Compliance - AP-504：APIN0504
- AP-505: APIN0505
- Minimum ArubaOS Release: ArubaOS and Aruba InstantOS 8.6.0.0
- 监管合规性（有关更多特定国家 /地区的监管信息和批准，请参阅您的Aruba代表）：
- FCC/ISED
- CE Marked
- RED Directive 2014/53/EU
- EMC Directive 2014/30/EU
- Low Voltage Directive 2014/35/EU
- UL/IEC/EN 60950
- EN 60601-1-1，EN60601-1-2
- 铁路证书（仅AP-505）：
- EN 50155:2017 – Railway Applications
- EN 50121-1：2017 - 铁路EMC
- EN 50121-3-2 – Railway EMC
- EN 50121-4:2016 – Railway Immunity
- IEC 61373 ed2:2008 – Railway Shock and Vibration
- Certifications:
- UL2043 plenum rating
- Wi-Fi Alliance:
- Wi-Fi认证A，B，G，N，AC
- Wi-Fi认证6（AX）
- WPA，WPA2和WPA3 - 带有CNSA选项的企业，个人（SAE），增强开放（OWE）
- WMM，WMM-PS，Wi-Fi Vantage，W-FI敏捷多频道
- Wi-Fi Location
- Passpoint (release 2)
- Bluetooth SIG
- 以太网联盟（POE，PD设备，第4类）
最小操作系统软件版本 - Arubaos和Aruba Instantos 8.6.0.0
Warranty - 美联社支持直接直流电力和对以太网的力量
Related Products
Find information on Aruba products that complement the 500 Series APs or another solution that might better suit your needs.
550系列AP
550系列AP旨在同时使用双收音机（8x8 + 4x4 MIMO）和可选的Tri-Radio模式为多个客户端和流量类型提供服务，从而使总体网络性能提高了4倍，而802.11AC访问点。
530系列AP
High-performance Wi-Fi 6-certified access points with dual 4x4 MIMO radios and dual smart-rate ports designed for high-density indoor mobile and IoT environments.

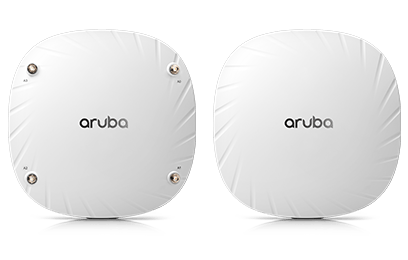

510系列AP
