Aruba 9000 Series Gateways
Perfect for branch and small campus networks, the next generation 9000 Series Gateways can be used for SD-WAN capabilities in the branch or for enhanced Wi-Fi scalability and security.
Cost-effective gateways for greater flexibility
Ideally suited for branch and small campus networks, the Aruba 9000 Series Gateways provide high-performance networking, SD-WAN, and security functionality in compact and cost-effective form factors.
High performance, greater scale
High performance, greater scale
Ensuring the highest levels of performance and availability for small campuses and large branches, the 9000 Series delivers seamless L2/L3 roaming for thousands of users or client devices.
Simplify secure access
Simplify secure access
Easily centralize the configuration of role-based access controls with Aruba’s built-in Policy Enforcement Firewall for Dynamic Segmentation.
Eliminate branch complexity
Eliminate branch complexity
Deploying with SD-Branch software is an affordable way to support multiple WAN connections, including the internet, MPLS, cellular, software-defined role-based policy enforcement, and path optimization.
Leverage cloud-based network management
Leverage cloud-based network management
With AI-powered insights, workflow automation, and robust security, Aruba Central enables IT to manage and optimize campus, branch, remote, and data center networks. Deploy the 9000 Series with this powerful, cloud-native platform to make management and orchestration simpler.
Versatile, cost-effective branch networking, SD‑WAN, and security
Flexible use cases
The 9000 Series can be deployed as an SD-Branch gateway to support data center, public cloud, and SaaS routing. Or alternately, it can be used as a Wi-Fi gateway for greater scalability.
Scales to 2,048 users or client devices
Delivering 10x throughput and 80x the client density of typical SD-WAN devices, the 9000 Series is purpose-built to support high density and 6 Gbps of firewall throughput.
Integrated LTE connectivity
The 9004-LTE can use high-speed LTE as a dedicated or redundant WAN uplink for business continuity and greater flexibility.
Threat defense with IDS/IPS
To improve security, gateways deployed add role- and identity-based intrusion detection and prevention capabilities (IDS/IPS) on top of existing security features.
Policy Enforcement Firewall
A Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN. When deployed alongside Aruba ClearPass Policy Manager, policies are automatically enforced to simplify SSID, VLAN, and policy management.
Details and specifications for the Aruba 9000 Series Gateways
Specifications
-
Performance and capacity 9004 9004-LTE 9012 SD-Branch*1.1 Supported Supported Supported WLAN Gateway*1.2 Supported Not Supported Supported Sizing Small site Small site Medium Site Interfaces 4x GbE2 4x GbE
4G Cellular12x GbE Power over Ethernet x x x (120W) 最大的校园或远程访问点 32 N/A 32 Maximum clients Up to 2,048* Up to 2,048* Up to 2,048* Active Firewall sessions 64K (128K on SD-Branch 2.3+)3 64K (128K on SD-Branch 2.3+)3 64K (128K on SD-Branch 2.3+)3 Maximum concurrent users/devices 2,048 2,048 2,048 Maximum VLANs 4,096 4,096 4,096 Concurrent GRE tunnels 544 544 544 Concurrent IPsec sessions 2,048 2,048 2,048 Concurrent SSL sessions 2,048 2,048 2,048 Concurrent tunneled ports 2,048 2,048 2,048 Firewall throughput (Gbps) 4 4 6 Wired bridged throughput (Gbps) 4 4 6 Encrypted throughput 3DES (Gbps) 4 4 4 Encrypted throughput AES-CBC-256 (Gbps) 4 4 4 Encrypted throughput AES-CCM (Gbps) 2 2 2 Encrypted throughput AES-GCM-256 (Gbps) 2 2 2 *1These modes are only enabled when the appropriate minimum licenses and ArubaOS firmware are deployed:
- 1.1SD-WAN Mode – Aruba Central Foundation, Foundation Base, or Advanced Licenses
- 1.2Controller Mode – ArubaOS Licenses
*2The 9004 was originally released (8.5) to operate in an Auto/Auto configuration. A software fix was introduced in 8.7.1.5, 8.8.0.2, 10.2.0.3, and SDWAN-2.3.0.2, which allows users to configure the speed and duplex of the interfaces on the 9004 to:Auto/Auto, 1000/Full, or 100/Full.
Speed Configuration
The 9004 Interface speed can now be set toAuto/1000/100.Full Duplex Configuration
9004 Interface =Auto
Partnering Device Duplex Configuration =Full
Partnering Device Auto Negotiation =Enabled*3Prior to 8.6, the active number of firewall sessions was set to 32K.

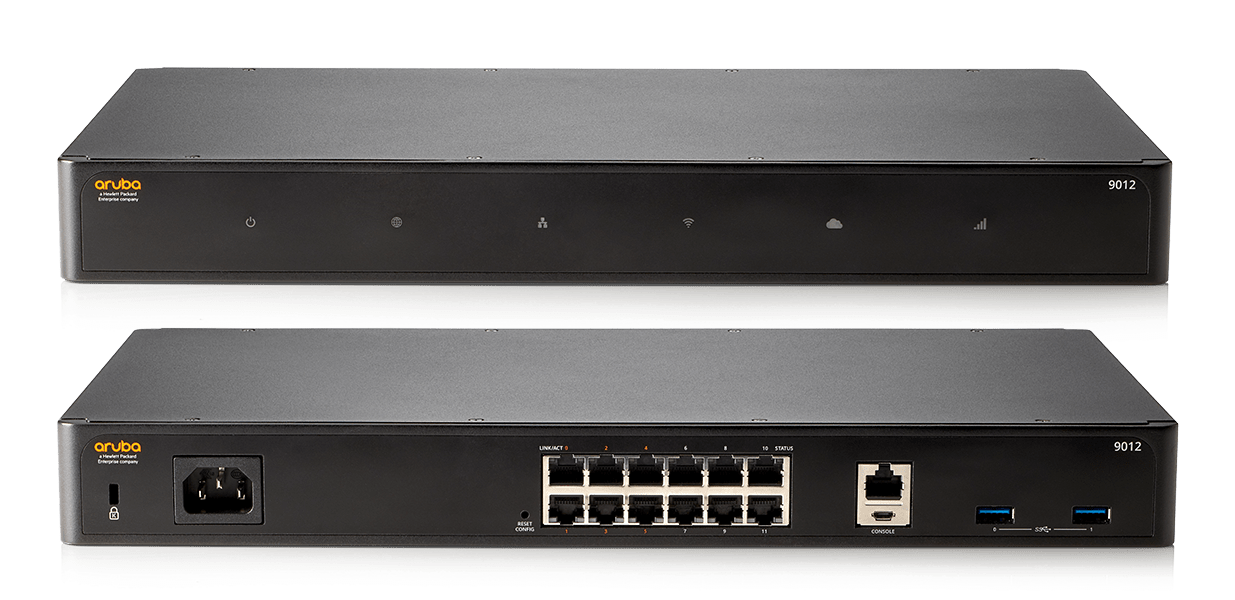

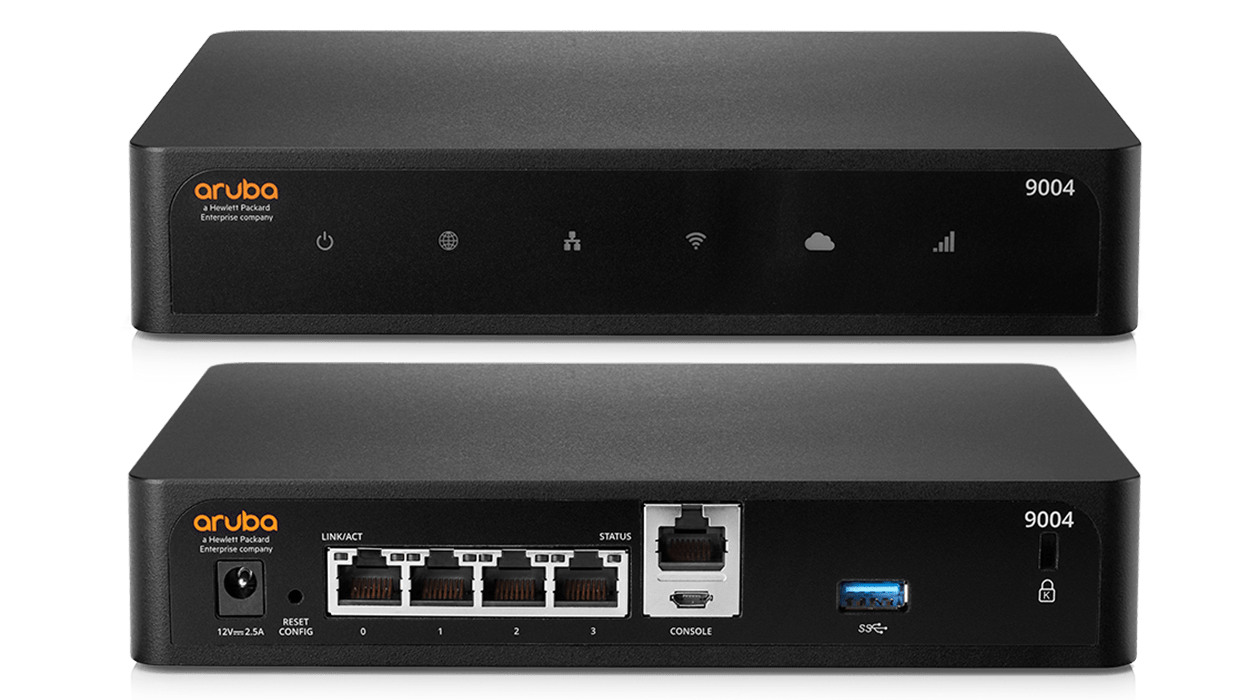

Interfaces and indicators Features 9004/9004-LTE 9012 Form factor/footprint Desktop/Fanless2Optional Mount Rack Tray Rack mount 100/1000BASE-T 4 12 (6x PoE+ ports) 10G SFP+ Ports (SFP also supported) - - Bluetooth 5 Yes Yes USB 3.0 Type-A 1 2 System status LED Yes Yes WAN ports status LED Yes Yes LAN ports status LED Yes Yes Gateway mode LED Yes Yes Central connectivity status LED1 Yes Yes LTE status LED Yes Yes Console port micro USB, RJ45 micro USB, RJ45
1LED utilized by the SD-WAN Gateway solution
21RU can support two 9004 gateways side-by-side using an optional mount kitIntegrated LTE Available on the 9004-LTE only Downlink/Uplink Speed 600/150 Mbps LTE Category 12 Connectors 2xSMA connectors for Main and Diversity Antenna
1xSMA connector for GPS
AntennaBands Supported Regions Supported Global LTE-FDD B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B25/B26/B28/B29/B30/B32/B66 LTE-TDD B38/39/B40/B41 2 x CA B1+B3/B5/B18/B19/B20/B21/B26; B2+B2/B4/B5/B12/B13/B17/B29/B30/B66;
B3 + B3 / B5 / B7/B8/B19/B20/B28; B4+B4/B5/B12/B13/B17/B29/B30; B5+B7/B25/B30/B66;
B7 + B7 / B20 / B28;B12 + B25 / B30;十三区最+ B66;B20 + B32;B25 +B25/B26/B41; B29+B30; B38+B38;
B40+B40; B41+B41; B66+B663 x CA DL inter-band 3CA:
B1+B3+B7; B1+B3+B19; B1+B3+B20; B1+B19+B21; B2+B4+B5;
B2+B4+B13; B2+B5+B30; B2+B12+B30; B2+B29+B30; B3+B7+B20; B3+B7+B28; B4+B5+B30;
B4+B12+B30; B4+B29+B30; B5+B66+B2; B13+B66+B2
DL 2 contiguous plus inter-band
3CA:
B2+B2+B5; B2+B2+B13; B3+B3+B7; B3+B7+B7; B3+B3+B20; B4+B4+B5; B4+B4+B13;
B5+B66+B66; B13+B66+B66; B66+B66+B2; B66+B66+B66UMTS B1/B2/B3/B4/B5/B8/B19 Certifications CE/ FCC/ IC/ NCC/ RCM/ GCF*/ PTCRB*/ ICASA* / WHQL ATT & VZW Physical 9004/9004-LTE 9012 Dimensions (HxWxD) 3.82 cm x 19.85 cm x 15.31 cm
(1.5" x 7.815" x 6.03")4.37 cm x 39.5 cm x 26.00 cm (1.72" x 15.55" x 10.24") Weight 1.143 kg (2.519 lbs) 3.42 kg (7.54 lbs) Environmental range Specification 9004/9004-LTE 9012 Operating Temperature 0° C to 40° C (32° C to 104° F) 0° C to 40° C (32° C to 104° F) Storage Temperature -40° C to 70° C (-40° F to 158° F) -40° C to 70° C (-40° F to 158° F) Operating Humidity 10% to 90% (RH), non-condensing 10% to 90% (RH), non-condensing Storage Humidity 10% to 95% (RH), non-condensing 10% to 95% (RH), non-condensing Operating Altitude 10,000 feet 10,000 feet Acoustic Noise 0 dBA (fanless) 29.1 – 63.5 dBA Cooling Conduction cooling Forced cooling Maximum Power Consumption 25W (with USB) 160W (with 120W of PoE) Power Source 12v DC, 2.5A AC-to-DC power adapter Internal Power Supply 90VAC – 264VAC 47-63Hz 3A at 100Vrms Power adapter specifications Features 9004/9004-LTE Input voltage range 90 VAC to 264 VAC Output voltage +12VDC, 2.5A Input frequency 47-63 Hz AC line input current (steady state) 1.0A Operating temperature -0° to +40° C Cooling - Weight .28 kg (.61 lbs) Regulatory and safety compliance Description 9004/9004-LTE 9012 Minimum Software Versions SD-WAN R1.7 (default) and Aruba Central 2.5.x in SD-WAN mode, or ArubaOS 8.5.0.0 in Mobility
Controller mode.
Wi-Fi 6 (802.11ax), AOS 8.5; Wi-Fi CERTIFIED WPA3™, AOS 8.5; Wi-Fi
CERTIFIED Enhanced Open™, AOS 8.5SD-WAN R2.0 (default) and Aruba Central 2.5.x in SD-WAN mode,ArubaOS (Future) in Mobility
Controller mode.AOS 8 (WLAN Gateway Mode) 9004: 8.5.0.5
9004-LTE: Not Supported8.7.1.1 or 8.8.0.0 SD-Branch 9004: SD-WAN R1.7 and Aruba Central 2.5.x in SD-WAN mode
9004-LTE: SD-WAN R2.2.0.2 or R2.3.0.0 and Aruba Central 2.51.x in SD-WAN modeSD-WAN R2.2.0.2 or R2.3.0.0 and Aruba Central 2.5.x in SD-WAN mode Regulatory SKU information ARCN9004 ARCN9012 Safety certifications UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
EN 60950:2005
IEC 60950 - 1第二版
EN/IEC 62368-1 2nd Edition
NOM (obtained by partners and distributors)UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
EN 60950:2005
IEC 60950 - 1第二版
EN/IEC 62368-1 2nd Edition
NOM (obtained by partners and distributors)Electromagnetic emissions certifications FCC Part 15 Class B
CISPR32 Class B
EN55022 Class B
ICES-003 Class B
VCCI Class B
EN61000-3-2
EN61000-3-3
EN55024, EN301 489-1/-17
KN32 Class B (9004), KN35, KN301 489-1/-17
CNS13438 Class BFCC Part 15 Class A
CISPR32 Class A
EN55032 Class A
ICES-003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
EN55024, EN301 489-1/-17
KN32 Class A, KN35, KN301 489-1/-17
CNS13438 Class ATelco Common Language Equipment Identifier (CLEI) Code Common Language Equipment Identifier (CLEI) Code Wireless certifications FCC/ISED
RED Directive 2014/53/EU
Others: MIC, NCC, ANATEL, COFTEL, CCCFCC/ISED
RED Directive 2014/53/EU
Others: MIC, NCC, ANATEL, COFTEL, CCCService and warranty information Hardware: 1 year parts/labor, can be extended with support contract Mobility Controller Software: 90 days, can be extended with support contract SD-WAN Gateway Software: 1, 3, 5, 7, or 10 year subscription licenses
Wi-Fi 6E
Related products
Find information on Aruba products that complement the 9000 Series Gateways or another solution better suited to your needs.
7200 Series Mobility Controllers and Gateways
Delivering industry-leading network services, the 7200 Series maximizes Wi-Fi performance to ensure seamless roaming. It’s perfect for campus WLAN scalability or branch SD-WAN, and VPN Concentrator capabilities.
7000 Series Mobility Controllers and Gateways
Perfect for mid-size campuses and branches, the 7000 Series enhances WLAN performance to improve wireless access, security, and client roaming.
流动控制器梵tual Appliance
流动控制器梵tual Appliances (VMCs) offer the same functionality as the physical Aruba Mobility Controllers. For higher scale and full ArubaOS features, they can be easily managed by the Aruba Mobility Conductor.
SD-Branch
9000 Series Gateways serve a key role within Aruba’s SD-Branch solution. Ideal for distributed enterprises, they unify WLAN, LAN, SD-WAN, and security.

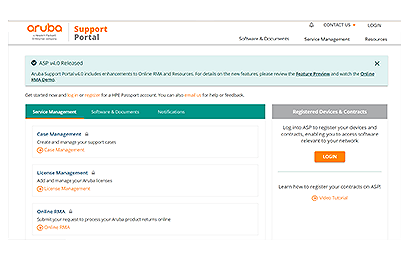

Aruba Operations Support
